Output Signal: | Two Wire 4-20mA DC | Supply Voltage: | 10.5 To 42 V DC For General Use And Flameproof Type |
---|---|---|---|
Material: | Low Copper Cast-aluminum Alloy Or SCS14A SS | Mounting: | Two-inch Pipe Or Flat Panel Mounting |
Weight: | 1.2 Kg(2.6 Lb) | Terminals: | M3 Screws |
Coating: | Polyurethan Resin Baked Finish | Accuracy: | (A/D Accuracy/span + D/A Accuracy) Or 0.1 % Of Calibrated Span |
High Light: | Temperature transmitter,4-20ma temperature transmitter |
YTA110 Temperature Measuring Instruments BRAIN / HART protocol
Quick Detail:
The YTA110 is the high performance field-mount temperature transmitter that accepts a single sensor input. This input can be from a RTD, thermocouple, ohm, or DC millivolt. It converts the sensor input to a 4 to 20mA DC analog signal. The YTA110 supports either BRAIN or HART® 5 digital communication protocol. The YTA110 is the choice for control and safety applications.
YTA110 features include:
§ Dual-compartment field-mount housing
§ TUV Nord SIL 2/3 Certified
§ 20 Input Types
Description:
Rugged Construction
Robust dual compartment housing with hermetically sealed terminals protects the electronics from moisture ingress and eliminates the need to expose the electronics to the environment. This ensures a long service lifeand long stability, while reducing maintenance and cost of ownership. Reliability and durability are guaranteed with NEMA 4x and IP67 compliance.
The durable epoxy paint maximizes chemical resistance; however, for maximum protection in marine environments where salt spray and semi immersion are common, a stainless steel housing is available.
Accuracy
The YTA110 enables advanced linearization of 20 types of industrial temperature sensors and input signals. Utilizing a selected high grade 16bit A/D converter allows the YTA110 to achieve a performance of ±0.1% of calibrated span accuracy.
Stability
The YTA110's stability is inherited from its meticulous product design and development philosophy. Containing a precision internal reference, YTA110 can detect and automatically correct for any instability, delivery a 5 year stability guarantee.

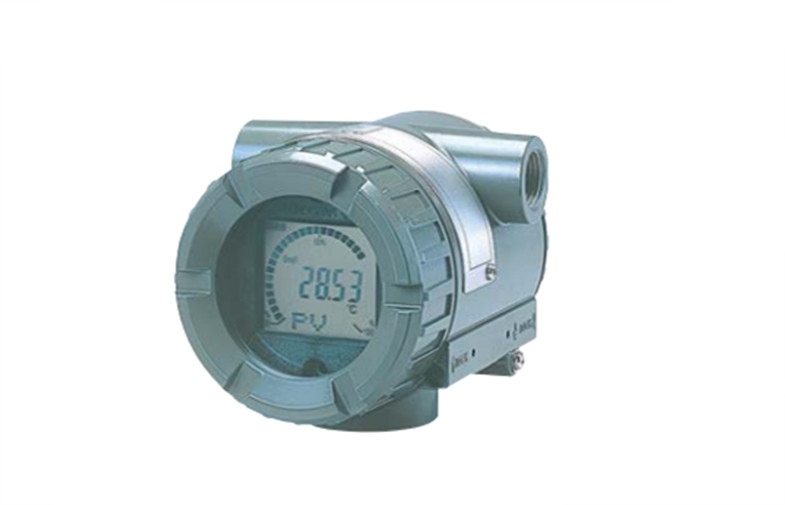

Clear and Concise Display
YTA110's large informative indicator clearly displays the current status and process information at a glance. A 32-segment circular bar graph provides a clear graphical feedback of the process measurement, while the measurement value itself is displayed in the center along with the correct measurement units. Below the measurement value, the indicator keeps you updated with diagostic information, such as measurement and alarm status.
YTA110 Terminals/ Wiring Diagram
Applications:
Electrolyzer Solution: Instruments and Solution for Ion-Membrane Electrolyzer Plant Application
Caustic soda and hydrochloric acid, produced in electrolyzer plants, are fundamental materials used in varieties of industries; chemicals, pharmaceuticals, petrol-chemicals, pulp and papers, etc. Profit is the result of the effective production with minimized running / maintenance cost. Proper control of the process brings you stabilized quality of products with the vast operational profit.
Steam is still one of the most popular methods of providing an energy source to a process and its associated operations. The more accurate and reliable measurements that are made, the more informed decisions can be taken that affect costs and product quality.
Industries: Oil&Gas Upstream, Refining, Bulk& Petrochemical, Specialty Chemical, Power, Pulp and Paper, Iron and Steel.
Continuous technology improvement is ongoing in the pulp & paper industry to obtain the best possible performance. The improved plant performance translates to the higher quality improvement and lower cost, and simultaneously environmental friendly plant operation.
Industry: Pulp and Paper
Specifications:
Accuracy (typical) |
YTA110: ±0.1% of span |
Cold junction Compensation accuracy |
(For T/C only) |
Power supply effect |
±0.005% of calibration span per volt |
Ambient temperature effect |
±0.1%/10 deg C (YTA110) |
Input signal |
YTA110/YTA310: single input, YTA320: dual input |
Output |
Two wire 4 to 20 mA DC or FOUNDATION fieldbus signal (YTA320) |
Supply voltage |
BRAIN and HART: 10.5 to 42 V DC |
Ambient temperature |
Option code may affect limits |
Mounting |
Optional mounting bracket can be used either for two-inch pipe or flat panel mounting. |
Weight |
1.2 kg (2.6lb) without integral indicator and mounting bracket. Integral indicator weighs 0.2kg (0.4lb). |
Degrees of protection |
IP66, IP67 and NEMA 4X |
Certificates |
CENELEC, CSA, FM, IECEx or TIIS |
SIL Certificate |
Certified by TÜV NORD in compliance with the IEC61508 SIL 2 capability for single tr |
