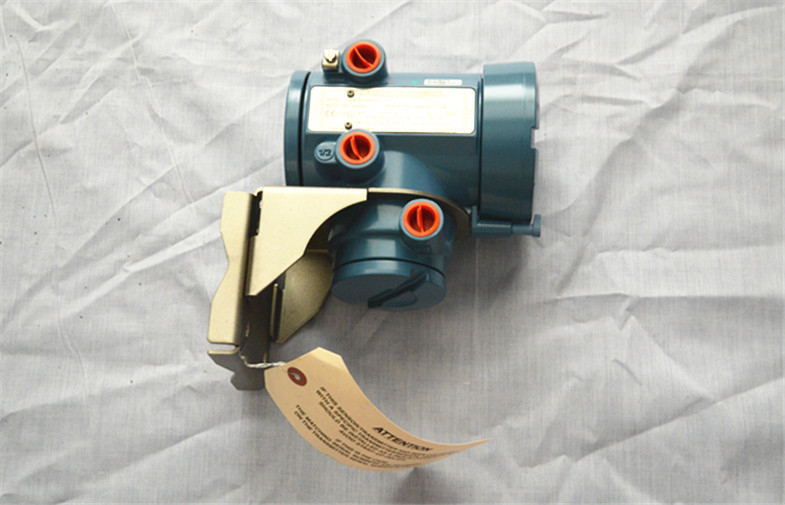

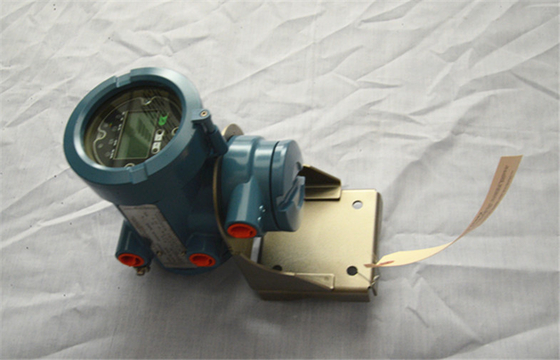

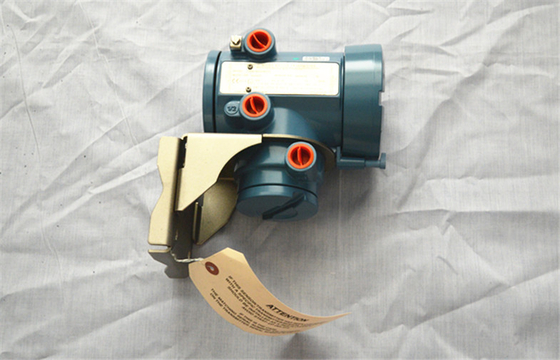

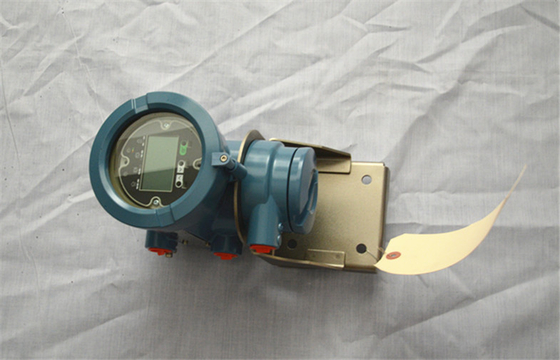

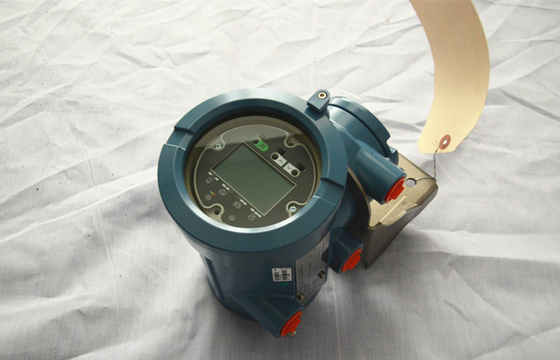

Emerson Micro Motion Coriolis Meter 1700 2700 Flow Transmitter

Emerson Micro Motion Coriolis Meter 1700 2700 Flow Transmitter

Quick Detail:

Type 1700: by HART or digital communication protocol Modbus, output in the form of ma and frequency/pulse output one of the following variables: mass flow, volume flow or standard gas volume flow
, 2700: by HART, Modbus, or FOUNDATION fieldbus PROFIBUS - PA digital communication protocol, to the output of the selected combinations (including ma, frequency and discrete I/O) at the same time the output multiple variables (including mass flow, volume flow rate, gas standard volume flow, density, temperature and driving gain)
Installed, with compact, one way to the sensor, can rotate 360 degrees;Also can through the remote installation options to four line or nine line high accurate sensors
, electronic components using MVD ™ technology
, 1, 1 area (Class I, Division 1 / Zone 1) local operator interface, supports English, French, Spanish, German
In situ instrument, self checking technology
• by SIS safety certification
, there are standard or special update rate to choose from, so as to improve the response time
Self checking, intelligent instruments may be fully check the performance of the sensor

Description:

Micro Motion 1700/2700 field-mount transmitters are powered by MVD Technology and designed for compact integral mounting, or to easily mount on a wall or pipe stand.These transmitters feature a rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface designed to make flowmeter access easy. Flowmeter commissioning is simple and straight-forward with virtually no special programming requirements. Process issues can be easily identified and resolved with built-in, easy access to diagnostics now including PlantWeb alerts with Foundation Fieldbus

Process issues can be easily identified and resolved with built-in, easy access to diagnostics now including PlantWeb alerts with Foundation Fieldbus.  Micro Motion® Model 1700 and 2700 field mount transmitters are also available in 316L stainless steel housing. This material is suitable for hazardous areas and provides increased durability for extreme environments such as offshore applications.

Advanced architecture with flexible installation options

• Integral or remote mounting provides maximum flexibility
• Cost-effective 4-wire interface reduces installation costs

Wide variety of I/O and application capabilities to fit your needs

• High-speed DSP for accuracy under the toughest conditions— entrained gas, high noise, high turndown, and more
• Enables Smart Meter Verification for quick, complete meter diagnosis without process interruption.
• Concentration and net flow measurement eliminates the need for additional instruments
• Approved for custody transfer and certified for SIL2 and SIL3, which provides measurement confidence and reliability
• WirelessHART™ option allows you to gain access to additional diagnostics and process information without added wiring costs

The 1700/2700 Transmitter is compatible with the following sensors:

• ELITE Peak Performance Coriolis Flow & Density Meters
• F-Series High Performance Compact Drainable Flow & Density Meters
• H-Series Hygienic Compact Drainable Flow & Density Meters
• T-Series Straight Tube Full-bore Flow & Density Meters
• R-Series General Purpose Flow-only Coriolis Meters
• D-Series Coriolis Meters
• CNG050 Coriolis Meters

Applications:

Meter verification

TÜV SIS certification

Discrete batch control

Petroleum measurement

Custody transfer

Specifications:

Competitive Advantage:

• Advanced architecture with flexible

installation options

• High-speed DSP

• Extensive built-in diagnostics

• Easy configuration and set-up

• On-board meter verification

, the MVD digital processing technology, can be in gas and empty with empty batch applications provide advanced built-in diagnostic performance
In situ instrument, the real self checking can determine the operation state of the sensor, online not interrupt process at the same time, also need not auxiliary reference, so as to realize rapid, operational, and simplify the performance of the check
For bulk and shipment and gas application which has the best ability of two-phase flow measurement
, compact structure, convenient installation, low cost of wiring
