Product Details:
Payment & Shipping Terms:
|
Supply Voltage: | 10.5 To 42 V DC | Material: | 316LSS ,Hastelloy ,Tantalum |
---|---|---|---|
Maximum Working Pressure: | 32 MPa (4500 Psi) | Process Temperature: | -40 To 120 Deg C (-40 To 248 Deg F) (general Use Type) |
Supply Voltage: | 10.5 To 42 V DC | Housing: | Cast Aluminum Alloy Or SUS316 Equivalent Stainless Steel (optional) |
Maximum Working Pressure: | 32 MPa (4500 Psi) | Degrees Of Protection: | IP67, NEMA 4X, And JIS C0920 Immersion Proof |
Capsule Material: | SUS316L (Diaphragm Material Is Hastelloy C-276) | Process Temperature: | -40 To 120 Deg C (-40 To 248 Deg F) (general Use Type) |
Cover Flange Material: | SUS316 | Housing: | Cast Aluminum Alloy Or SUS316 Equivalent Stainless Steel (optional) |
Degrees Of Protection: | IP67, NEMA 4X, And JIS C0920 Immersion Proof | Capsule Material: | SUS316L (Diaphragm Material Is Hastelloy C-276) |
Cover Flange Material: | SUS316 | ||
High Light: | Rosemount differential pressure transmitter,differential pressure transducer |

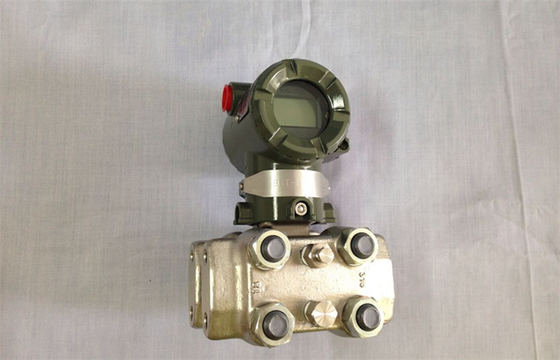

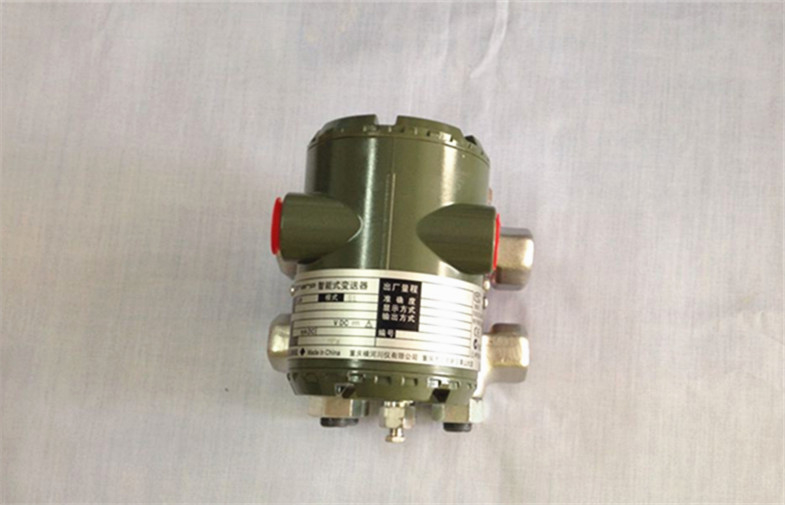

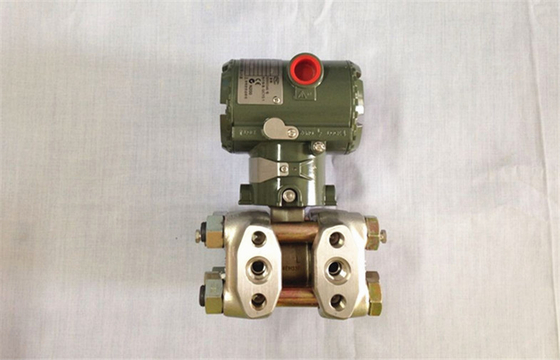

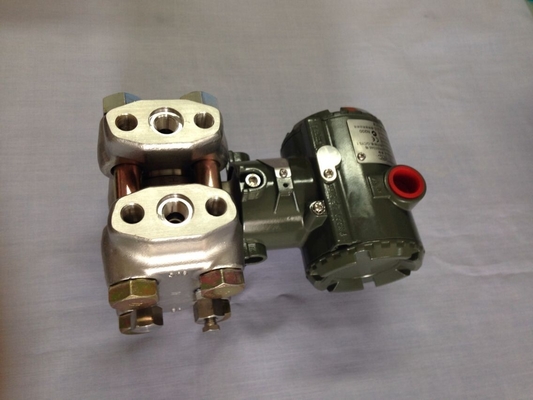

Industrial Rosemount pressure transmitter High Performance
Quick Detail:
The EJA-A series is Yokogawa's most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.
The EJA130A is the Traditional-mount high-static Differential Pressure Transmitters in the series.
EJA130A features include:
§ 0.065% Accuracy
§ 0.1% Stability per 5 years
§ 4,500 psi MWP
Description:
Yokogawa's Differential Pressure Transmitter with DPharp digital sensor offers the performance and device intelligence needed to get greater insight into your process.
Plants run better with Yokogawa pressure transmitters.
Self-Diagnostics
Yokogawa's DPharp active sensor and rugged construction allow users to run their plants safer and with less downtime.
Yokogawa Pressure transmitter help plants run longer.
Rugged Construction
Inherently Safe Design
Applications:
Boiler Drum Level Measurement
DPharp performance in boiler drum level measurement applications is superior to metallic capacitance type pressure transmitters. Improved performance can be attributed to the unique resonant silicon sensor design with dual resonators.
Industry: Power
Hydrogen Permeation
Hydrogen is the simplest and smallest atomic element. Water, acids, bases, and the immense family of organic compounds all contain hydrogen. Even though hydrogen is not corrosive, it can cause problems for pressure transmitters through Hydrogen Permeation.
Industry: Water& Wastewater
Specifications:
Measurement Types | |
Primary Variable | Differential Pressure (DP) |
Reference Accuracy | |
Primary Variable | ±0.065% of DP Span |
Long Term Stability (All Normal Operating Conditions) | |
Primary Variable | ±0.1% of URL per 5 years |
Maximum Pressure Limit (MWP) | |
All Capsules | 4,500 psi |
Over-pressure Effect | |
Primary Variable | ±0.03% of URL |
Rangeability | |
Primary Variable | 100:1 |
Burst Pressure (Absolute) | |
All Capsules | 10,000 psi |
Competitive Advantage:
EJA Series Differential Pressure Transmitter With Fieldbus Communication
Differential pressure transmitters, which serve as the core of field instrumentation, are widely used to measure the flow rate, pressure and density of liquids, gases and steam, as well as the level of liquid in a tank.
