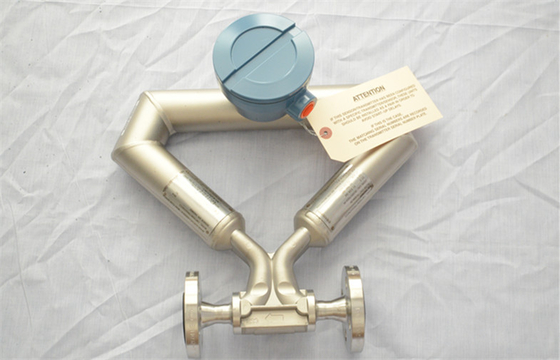

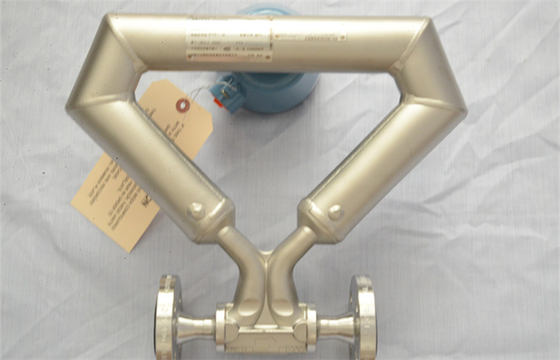

Emerson Micro Motion Coriolis Meter Mass Flow and Density Meter with MVD Technology

Emerson Micro Motion Coriolis Meter Mass Flow and Density Meter with MVD Technology

Quick Detail:

• Unique design delivers unparalleled measurement sensitivity and stability
• Guarantees consistent, reliable performance over the widest flow range
• Smart Meter Verification for quick, complete meter diagnosis without
process interruption.
• 2-wire loop-powered option for installation simplification
Superior performance in the most challenging applications
• Industry standard for custody transfer and critical process control
• Best two-phase flow capability for batching, loading, and entrained
air applications
• Immune to fluid, process, or environmental effects for superb
measurement confidence

Description:

Micro Motion® ELITE® meters are the leading meters for precision flow and density measurement. ELITE meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop. Every ELITE meter features standard secondary containment, and is available with stainless steel or nickel alloy wetted parts and a wide variety of process connections to meet your every need.
ELITE meters have been designed for special applications. The CMF010 provides remarkably high performance in low-flow applications. The high-pressure CMF010P is suitable for applications up to 6000 psi (413 bar). The Model CMF400 meter offers the most accurate measurement available in a high-capacity meter. models CMF200, CMF300, and CMF400 are available in high-temperature and extreme hightemperature versions that provide accurate measurements in severe environments up to  800 °F (427 °C).

Applications:

Micro Motion Coriolis meters meet a vast range of application needs, ranging from extreme low-flow up to
high-flow, high-capacity lines. Cryogenic, hygienic, high-temperature, and high-pressure—Micro Motion
meters can handle them all. Micro Motion meters are available with a variety of wetted parts to ensure the
best material compatibility. Now with the industry’s only 2-wire Coriolis option, Micro Motion provides
unsurpassed simplicity of installation and application flexibility.

Coriolis meters.Coriolis meters offer dramatic
benefits over traditional volumetric measurement
technologies. Coriolis meters:

Special applications

Several ELITE meters have been designed for

special applications. The CMF010, our smallest

meter, provides remarkably high performance in

low-flow applications. It features a single,

continuous flow tube, and is also available in a

high-pressure model, for applications up to

6000 psi (413 bar).

The much larger CMF400 4-inch meter offers the

most accurate measurement available in a highcapacity meter.

The 3-inch CMF300A high-temperature meter

provides the same accuracy and measurement

capabilities as our other ELITE meters, at

temperatures up to 650 °F (343 °C).

Our CMF025, CMF050, and CMF100 meters are

available with optional flangeless, wafer-style

process connections.

Specifications:

Competitive Advantage:

• Deliver accurate and repeatable process data
over a wide range of flow rates and process
conditions.
• Provide direct inline measurement of mass flow
and density, and also measure volume flow and
temperature—all from a single device.
• Have no moving parts, so maintenance costs
are minimal.
• Have no requirements for flow conditioning or
straight pipe runs, so installation is simplified
and less expensive.
• Provide advanced diagnostic tools for both the
meter and the process.
