precision level / specific gravity measurement 3051L Rosemount Level Transmitter
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | rosemount level sensor,rosemount capacitance level transmitter |
||
|---|---|---|---|

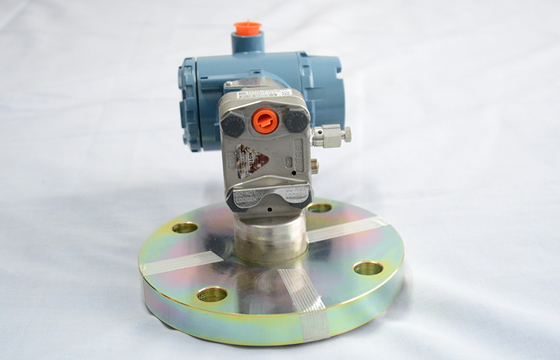

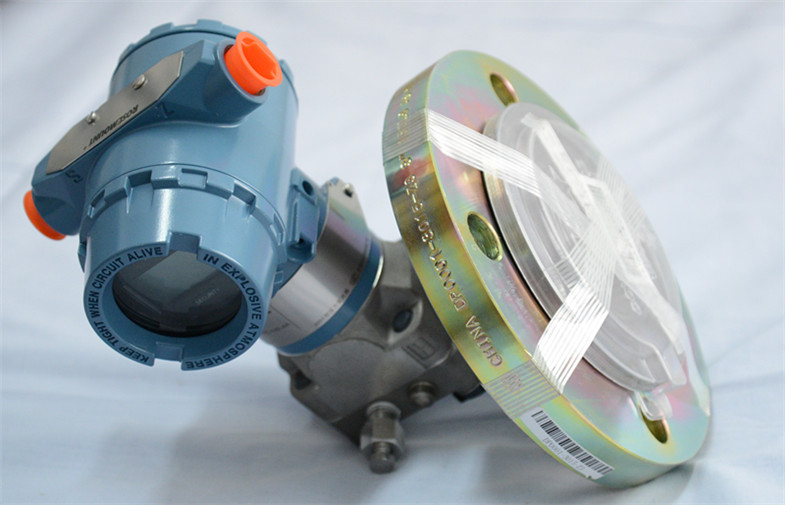

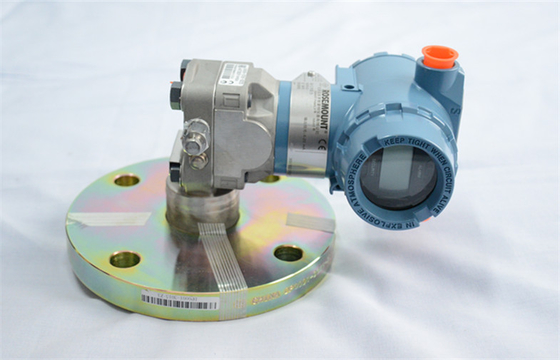

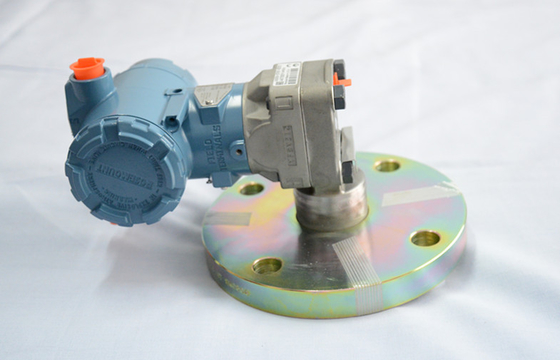

3051L Rosemount Level Transmitter precision level and specific gravity measurement for tank configurations
Quick Detail:
- Manufactured by Rosemount
- Compact and lightweight for easy installation and maintenance
- Remote seal option provides flexible measurement capability
- 100:1 rangeability
- Up to 0.075% accuracy
- Flush and extended diaphragms
- Multiple fill fluids and wetted materials available
Description:
The Rosemount 3051L liquid level transmitter provides precision level and specific gravity measurement for a wide variety of tank configurations. Based on proven capacitance cell technology, the Rosemount 3051L liquid level transmitter is designed for applications requiring the highest levels of accuracy and performance, such as inventory control, material balance, and head box.
With many diaphragm and flange options to fit all process and installation needs, the Rosemount 3051L liquid level transmitter is engineered to be the perfect fit for nearly any application. The Rosemount 3051L liquid level transmitter offers accuracy up to 0.075% of span and 100:1 rangeability. A welded fill fluid system provides best-in-class system reliability. The Rosemount 3051L liquid level transmitter is configurable with multiple wetted materials and fill fluids. A wide range of options and hazardous area approvals are also available. Output options available to the Rosemount 3051L liquid level transmitter include 4-20mA or 1-5VDC with HART protocol, Profibus, or FOUNDATION fieldbus.
Applications:
Rosemount 3051L Liquid Level transmitters provide reliable liquid level measurement.
Specifications:
| Rosemount Flange-Mounted Liquid Level Transmitter | ||||
| 3051L | Flange-Mounted Liquid Level Transmitter | |||
| Code | PRESSURE RANGES (RANGE/MIN. SPAN) | |||
| 2 | –250 to 250 inH2O/2.5 inH2O (–0,6 to 0,6 bar/6,2 mbar) | |||
| 3 | –1000 to 1000 inH2O/10 inH2O (–2,5 to 2,5 bar/25 mbar) | |||
| 4 | –300 to 300 psi/3 psi (–20,7 to 20,7 bar/0,2 bar) | |||
| Code | Output | |||
| A | 4–20 mA with Digital Signal Based on HART Protocol | |||
| M |
Low-Power 1–5 V dc with Digital Signal Based on HART Protocol (See Option Code C2 for 0.8–3.2 V dc Output) NOTE: Not available with hazardous certification Option Codes I1, N1, E4, K6, and K8. |
|||
| F | FOUNDATION fieldbus Protocol | |||
| W(1) | Profibus PA Protocol | |||
| M | Low-Power 1–5 V dc with Digital Signal Based on HART Protocol (See Option Code C2 for 0.8–3.2 V dc Output) | |||
| Code | Process Connection Size | Material | Extension Length | |
| G0(2) | 2-in./DN 50 | 316L SST | Flush Mount Only | Out parts accord with the Schedule 80 pipe diameter size. About the Schedule 40 pipe size, please consult factory. |
| H0(2) | 2-in./DN 50 | Alloy C-276 | Flush Mount Only | |
| J0 | 2-in./DN 50 | Tantalum | Flush Mount Only | |
| A0(2) | 3-in./DN 80 | 316L SST | Flush Mount | |
| A2(2) | 3-in./DN 80 | 316L SST | 2-in./50 mm | |
| A4(2) | 3-in./DN 80 | 316L SST | 4-in./100 mm | |
| A6(2) | 3-in./DN 80 | 316L SST | 6-in./150 mm | |
| B0(2) | 4-in./DN 100 | 316L SST | Flush Mount | |
| B2(2) | 4-in./DN 100 | 316L SST | 2-in./50 mm | |
| B4(2) | 4-in./DN 100 | 316L SST | 4-in./100 mm | |
| B6(2) | 4-in./DN 100 | 316L SST | 6-in./150 mm | |
| C0(2) | 3-in./DN 80 | Alloy C-276 | Flush Mount | |
| C2(2) | 3-in./DN 80 | Alloy C-276 | 2-in./50 mm | |
| C4(2) | 3-in./DN 80 | Alloy C-276 | 4-in./100 mm | |
| C6(2) | 3-in./DN 80 | Alloy C-276 | 6-in./150 mm | |
| D0(2) | 4-in./DN 100 | Alloy C-276 | Flush Mount | |
| D2(2) | 4-in./DN 100 | Alloy C-276 | 2-in./50 mm | |
| D4(2) | 4-in./DN 100 | Alloy C-276 | 4-in./100 mm | |
| D6(2) | 4-in./DN 100 | Alloy C-276 | 6-in./150 mm | |
| E0 | 3-in./DN 80 | Tantalum | Flush Mount Only | |
| F0 | 4-in./DN 100 | Tantalum | Flush Mount Only | |
Competitive Advantage:
1.3051 series has high reliability, long term stability and easy to maintain and design.
2.pressure range is from 0-1.5psi to 0-4000psi (from 0-10 to 0-27580kpa)
3.Reference accuracy is 0.075%
4.Range rate: 100:1
5.Due to its characteristics of light weight and compact size,so that can conductive to realized easy installation and carry.
6.Can be reached to 5-year stability.
7.application to measure liquid, gas and steam.
