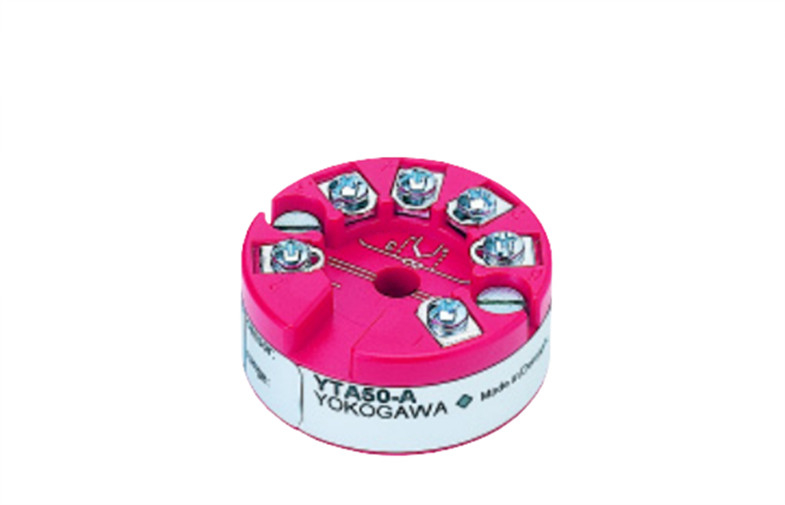

Head mount Temperature Measuring Instruments YTA50 with thermocouple
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Output Signal: | Two Wire 4-20mA DC | Output Signal: | Two Wire 4-20mA DC |
|---|---|---|---|
| Ambient Temperature Limits: | -40 To 85℃ | Response Time: | 1 To 60 Seconds(programmable) |
| Ambient Temperature Limits: | -40 To 85℃ | Supply Voltage: | 7 To 35 V DC |
| Response Time: | 1 To 60 Seconds(programmable) | Mounting: | DIN Form B Head Mounting |
| Supply Voltage: | 7 To 35 V DC | Weight: | 50 G (0.11 Lb) |
| Mounting: | DIN Form B Head Mounting | Terminals: | M3 Screws |
| Weight: | 50 G (0.11 Lb) | Terminals: | M3 Screws |
| High Light: | Temperature transmitter,Rosemount Temperature transmitter |
||
Head mount Temperature Measuring Instruments YTA50 with thermocouple
Quick Detail:
The YTA50 is a head mount temperature transmitter with a single input. The single input accepts thermocouples, RTD, Ohms or a DC millivolt source. All inputs are linearized and converted in to an industrial standard 4 to 20 mA DC output for transmission to your system. YTA50 is the choice for your monitoring applications.
YTA50 features include:
§ 4 to 20 mA DC analog output
§ 16 Input Types
§ Head Mount or DIN Rail Mount
Description:
YTA50 Overview
Microprocessor-based sensing technology ensures high accuracy and stability.
Variety of sensor inputs
The type of sensor input is user-selectable: RTD, Thermocouple (T/C), DC Voltage, or Resistance.
Mounting:
Head Mounting
YTA50 mounted in a #2 Connection Head.
YTA50 is DIN Form B compliant and can be mounted in a #2 or #9 connection head. It can use an adapter plate to attach to a #5 connection head.
DIN Rail Mounting
YTA50 Single Input
Applications:
Electrolyzer Solution: Instruments and Solution for Ion-Membrane Electrolyzer Plant Application
Caustic soda and hydrochloric acid, produced in electrolyzer plants, are fundamental materials used in varieties of industries; chemicals, pharmaceuticals, petrol-chemicals, pulp and papers, etc. Profit is the result of the effective production with minimized running / maintenance cost. Proper control of the process brings you stabilized quality of products with the vast operational profit.
Pulp & Paper: Instruments and Solution for Pulp & Paper Industry
Continuous technology improvement is ongoing in the pulp & paper industry to obtain the best possible performance. The improved plant performance translates to the higher quality improvement and lower cost, and simultaneously environmental friendly plant operation.
Industry: Pulp and Paper
Specifications:
Measurement Types | |
Primary Variable | Differential Pressure (DP) |
Reference Accuracy | |
Primary Variable | ±0.065% of DP Span |
Long Term Stability (All Normal Operating Conditions) | |
Primary Variable | M, H, or V Capsule: ±0.1% of URL per 5 years |
Maximum Pressure Limit (MWP) | |
All Capsules | 2,300 psi |
Over-pressure Effect | |
Primary Variable | ±0.03% of URL |
Rangeability | |
Primary Variable | M, H, or V Capsule: 100:1 |
Burst Pressure (Absolute) | |
All Capsules | 10,000 osi |
