Product Details:
Payment & Shipping Terms:
|
Condition: | New | Type: | Horizontal |
---|---|---|---|
CNC Or Not: | CNC | Automatic Grade: | Automatic |
Max. Swing Diameter: | 350mm | Voltage: | 380v |
Power(W): | 15kw | Dimension(L*W*H): | 4900*4500*2850mm |
Weight: | 9500kg | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Warranty: | 12 Months | Work Table Size: | 500*500MM |
X Axis Travel: | 900MM | Y Axis Travel: | 750MM |
Z Axis Travel: | 1250MM | Tool Quantities: | 24 |
Spindle Taper: | BT50 | Spindle Speed: | 8000rpm |
Fast Feeding Speed: | 24 M/min | Net Weight: | 9500KG |
Machine Dimension: | 4900*4500*2850MM | ||
High Light: | CNC precision machining,precision machining center |

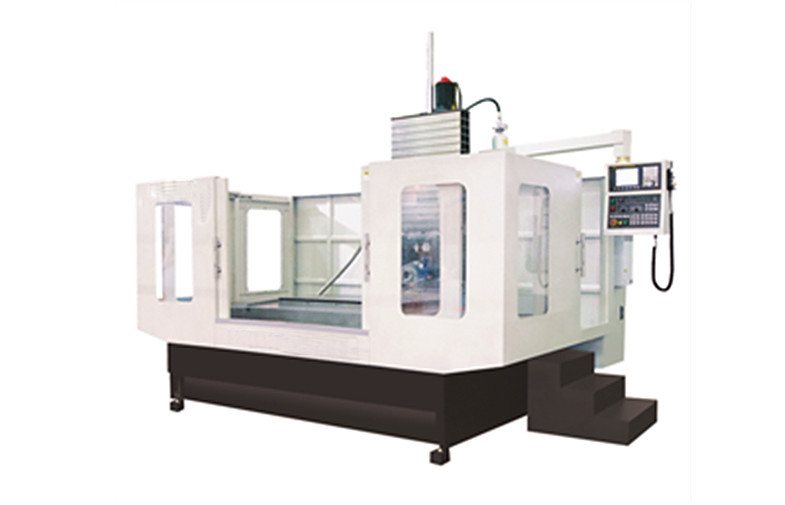

Horizontal CNC Machining Center W1075 W1290 / W1814 Reducer spindle drive with ZF or BF with whole system protection
Quick Detail:
● Reducer spindle drive with ZF or BF
● whole system protection
● spindle speed is 8000rpm
● Rotary table
● Centering on water
● Storage type tool magazine (40)
Description:
1. Warranty for this threading machine
1. engineers are available to do oversea machinery service. In some countries, we have oversea agent doing
after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine
for customer convenience.
5. We offer best agent price and distributer price.
2. Customer and delivery
accept ODM, OEM,
accept FOB, CFR, CIF, EXW price,
T/T 30% as deposit and the balance before machine tools leave our factory.
normal products with standard configuration manufacturing time is 7-15 working days.
Applications:
This moving column VMC is suitable for the mechanical processing and mold making. And it can adapt to the
processing requirement from rough machining to fiish machining. It can also fiish many working procedures like
milling, drilling, tapping, boring etc
Specifications:
Specifications | Unit | W1075 | W1290 | W1814 |
Work table size | mm | 1300*600 | 1360*700 | 2000*900 |
Table bearing | kg | 1200 | 1300 | 2000 |
Table about the itinerary | mm | 1000 | 1200 | 1800 |
Up and down travel of spindle box | mm | 750 | 900 | 1400 |
Table before and after stroke | mm | 600 | 700 | 900 |
Distance between spindle end face and worktable surface | mm | 332 | 332 | 352 |
Distance between spindle center and column guide surface | mm | 190-940 | 145-1045 | 145-1545 |
T-slot (No.* slot width *spacing) | 5-18*120 | 5-18*152.5 | 5-22*165 | |
Spindle type/size installation | mm | BT50/190 | BT50/190 | BT50/190 |
Type of shank | MAS403 BT50 | MAS403 BT50 | MAS403 BT50 | |
Latin type | MAS BT50-1 | MAS BT50-1 | MAS BT50-1 | |
Broach force | Kw | 8KN | 8KN | 8KN |
Spindle motor | rpm | 11/15 | 15/18.5 | 18.5/22 |
Maximum spindle speed | 6000 | 6000 | 6000 | |
X/Y/Z three axis of fast moving degree | 20 | 20 | X: 16 Y: 20 Z: 16 | |
X/Y/Z three axis cutting feed | 1-10000 | 1-1000 | 1-1000 | |
CNC system | FANUC oi MD | FANUC oi MD | FANUC oi MD | |
Positioning accuracy X | 0.010/300 | 0.010/300 | 0.012/300 | |
Y | 0.010/300 | 0.010/300 | 0.012/300 | |
Z | 0.010/300 | 0.010/300 | 0.012/300 | |
Repeat positioning accuracy X | 0.005 | 0.005 | 0.006 | |
Y | 0.005 | 0.005 | 0.006 | |
Z | 0.005 | 0.005 | 0.006 | |
Dimensions (L*W*H) | mm | 3900*2980*3100 | 4000*3200*3350 | 4600*3750*3600 |
NW | kg | 9500 | 12800 | 18500 |
