Product Details:
Payment & Shipping Terms:
|
Condition: | New | Type: | Horizontal |
---|---|---|---|
CNC Or Not: | CNC | Automatic Grade: | Automatic |
Max. Swing Diameter: | 350mm | Voltage: | 380v |
Power(W): | 15kw | Dimension(L*W*H): | 4900*4500*2850mm |
Weight: | 9500kg | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Warranty: | 12 Months | Work Table Size: | 500*500MM |
X Axis Travel: | 900MM | Y Axis Travel: | 750MM |
Z Axis Travel: | 1250MM | Tool Quantities: | 24 |
Spindle Taper: | BT50 | Spindle Speed: | 8000rpm |
Fast Feeding Speed: | 24 M/min | Net Weight: | 9500KG |
Machine Dimension: | 4900*4500*2850MM | ||
High Light: | CNC machining services,precision machining center |

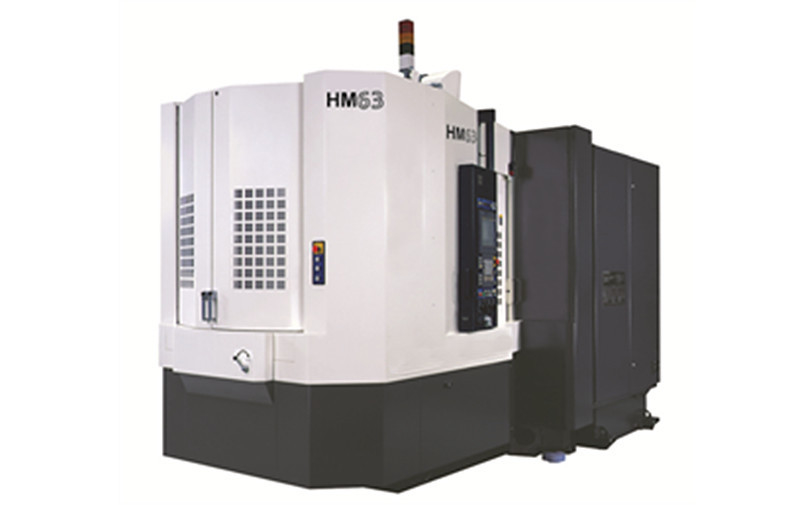

Horizontal CNC Machining Center HM50 / HM50B HM63 / HM63B with
higher overall unit rigidity and faster
movement speed
Quick Detail:
1. Computer finite element optimization makes higher overall unit rigidity and faster
movement speed.
2. All linear motion axes adopt linear guideways.
3. All the parts are stressed reasonably and have compact structure.
4. Pre-tension C3 level precision ball screw ensures.
5. Three axes adopt high precision flexible R+W couplings close coupled to ensure
the high position precision in the high speeding state.
6. The full protection machine house, chip discharge and drainage are devised
advanced and reliable structure.
7. The machine adopts human body engineering design to make sure the operation
easily and safely.
8. The exchange worktable can be optional.
9. All sorts of the measuring head and grating detection system can be added.
Description:
1. Warranty for this threading machine
1. engineers are available to do oversea machinery service. In some countries, we have oversea agent doing
after-sale service in time and professionally.
2. 24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine
for customer convenience.
5. We offer best agent price and distributer price.
2. Customer and delivery
accept ODM, OEM,
accept FOB, CFR, CIF, EXW price,
T/T 30% as deposit and the balance before machine tools leave our factory.
normal products with standard configuration manufacturing time is 7-15 working days.
Applications:
The machine is suitable for military, aerospace, automotive, model, machinery manufacturing and other industries, paper
box parts parts, disc type parts, special-shaped parts, parts by a fiture can automatically complete a variety of machining
four surface milling, boring, drilling, expanding, hinge, company, ensure the machining precision and effiiency
Specifications:
Horizontal Machine Center Optional Accessories
● Reducer spindle drive with ZF or BF
● Spindle speed is 8000rpm
● Centering on water
● Storage type tool magazine (40)
Horizontal Machine Center Specification HM50/50B
|
HM50 | HM50B |
Work table size |
500*500 | 500*500 |
Work table quantities |
1 | 2 |
Worktable scale division |
1 | 1 |
X axis travel |
900 | 900 |
Y axis travel | 750 | 750 |
Z axis travel | 650 | 1250 |
Distance between spindle center and worktable surface |
110-860 | 110-860 |
Distance between spindle end face to worktable center |
230-880 | 230-1480 |
T-slot (No.* slot width *spacing) |
5-14×100 | 5-14×100 |
Spindle taper |
BT50 | BT50 |
Spindle speed |
8000rpm | 8000rpm |
X.Y.Z axis ball screw |
4512,4512,5012 | 4512,4512,5012 |
X.Y.Z axis fast moving speed |
24/24/24 | 24/24/24 |
X.Y.Z axis linear guideways | RUE45,RUE45,RUE55 | RUE45,RUE45,RUE55 |
X.Y.Z axis motor connection | direct connection | direct connection |
Spindle motor power | 11/15 | 11/15 |
X.Y.Z axis motor | X:12 Y:22Z:22 | X:12 Y:22 Z:22 |
Tool quantity |
24 | 24 |
Max. Dia. length and weight of tools | 112mm/350mm/15g | 112mm/350mm/15g |
Position accuracy | ±0.008/±0.008/±0.008 | ±0.008/±0.008/±0.008 |
Reposition accuracy | ±0.008/±0.008/±0.008 | ±0.008/±0.008/±0.008 |
Machine dimension (L*W*H) |
4900X4500X2850 | 4900X4500X2850 |
Load capacity of work table |
500 | 500 |
N.W. |
8200 |
9500 |
Horizontal Machine Center Specification HM63/63B
|
HM63 | HM63B |
Work table size |
630*630 | 630*630 |
Work table quantities |
1 | 2 |
Worktable scale division |
1 | 1 |
X axis travel |
1000 | 1000 |
Y axis travel | 850 | 850 |
Z axis travel | 1050 | 1050 |
Distance between spindle center and worktable surface |
110-960 | 110-960 |
Distance between spindle end face to worktable center |
50-1100 | 50-1100 |
T-slot (No.* slot width *spacing) |
5-18×100 | 5-18×100 |
Spindle taper |
BT50 | BT50 |
Spindle speed |
6000rpm | 6000rpm |
X.Y.Z axis ball screw |
5012,5012,5012 | 5012,5012,5012 |
X.Y.Z axis fast moving speed |
24/24/24 | 24/24/24 |
X.Y.Z axis linear guideways | MSA55S,MSA55LS,MSA55LS | MSA55S,MSA55LS,MSA55LS |
X.Y.Z axis motor connection | direct connection | direct connection |
Spindle motor power | 15/18.5 | 15/18.5 |
X.Y.Z axis motor | X:22 Y:22Z:22 | X:22 Y:22 Z:22 |
Tool quantity |
24 | 24 |
Max. Dia. length and weight of tools | 112mm/350mm/15g | 112mm/350mm/15g |
Position accuracy | ±0.008/±0.008/±0.008 | ±0.008/±0.008/±0.008 |
Reposition accuracy | ±0.005/±0.005/±0.005 | ±0.005/±0.005/±0.005 |
Machine dimension (L*W*H) |
5100*4950*2850 | 5100*4950*2850 |
Load capacity of work table |
1000 | 1000 |
N.W. |
9600 |
11000 |
