Product Details:
Payment & Shipping Terms:
|
Voltage: | 380v | Power(W): | 18.5 / 22 Kw |
---|---|---|---|
Dimension(L*W*H): | 4500*4200*4000mm | Weight: | 25000Kg |
Certification: | CE, ISO9001, ISO14001 | Warranty: | 12 Months |
After-sales Service Provided: | Overseas Third-party Support | Max. Loading Weight On Work Table: | 35000kg |
Work Table: | 2100*2500mm | X/Y/Z Travel: | 12000/10000/10000mm |
Distance From Spindle To Table: | 350 - 1150 Mm | Net Weight: | 25000kg |
Max . Spindle Speed: | 6000 Rpm | Position Accuracy: | 0.025 / 1000 Mm |
High Light: | CNC machining services,CNC precision machining |

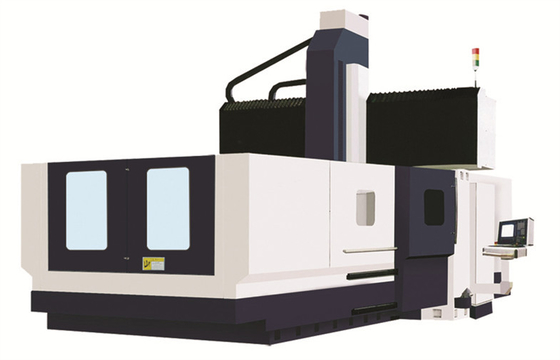

LDM2625 Gantry CNC machining center with Japanese NSK Bearing and Germany R W Coupling
Quick Detail:
● High strength cast iron
● Taiwan spindle
● Taiwan ball screw and locking nut
● Taiwan pressure cylinder
● Japanese NSK bearing
● Germany R+W coupling
● Automatic lubrication system
● Chip conveyor at optional
Applications:
This machine is applied to the large and medium-sized mechanical parts processing and complex mold making .
By installed and clamped for one time, the work piece could be milled, drilled, tapped, reamed and many kinds of procedures
Specifications:
LDM2625
Specifications | Unit | LDM2625 |
Work table size | mm | 2,100*2,500 |
Distance between two column | mm | 2,900 |
Load capacity of work table | T | 35 |
T-slot (No.* slot width *spacing) | mm | 7-28*300 |
X axis travel | mm | 2,500 |
Y axis travel | mm | 2,400 |
Z axis travel | mm | 800 |
Outer diameter of spindle | mm | φ190 |
Spindle speed | rpm | 6,000 |
Spindle motor | kW | 18.5/22 |
Cutting feed speed | mm/min | 10-7500 |
X axis rapid feed speed | m/min | 12,000 |
Y axis rapid feed speed | m/min | 10,000 |
Z axis rapid feed speed | m/min | 10,000 |
Position accuracy | mm | 0.025/1,000 |
Reposition accuracy | mm | 0.01/1,000 |
Bearing | X:40TAC72B | |
Dimensions (L*W*H) | mm | 4,500*4,200*4,000 |
NW | T | 25 |
Warranty
1. engineers are available to do oversea machinery service. In some countries, we have oversea agent doing
after-sale service in time and professionally.
2. 24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine
for customer convenience.
5. We offer best agent price and distributer price
