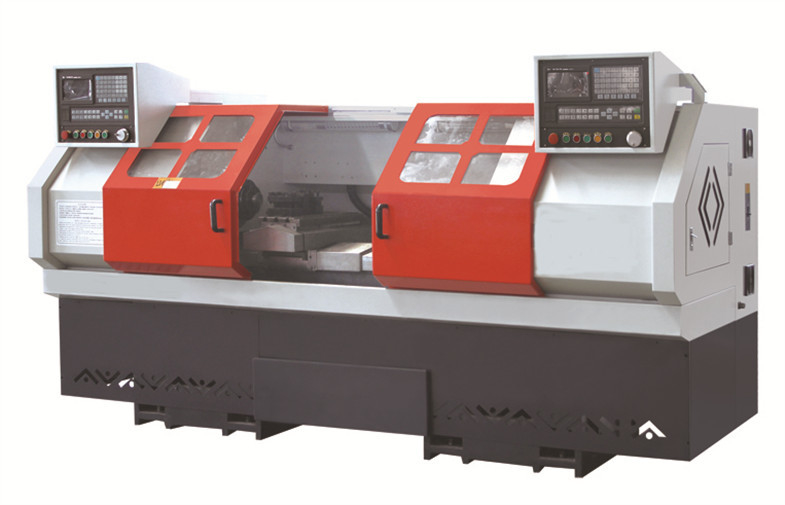

Double spindle CNC lathe Machine , horizontal 2 head threading machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Horizontal | Automatic Grade: | Automatic |
|---|---|---|---|
| Voltage: | 380v | Power(W): | 5.5kw |
| Dimension(L*W*H): | 2000*1400*1580 Mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Spindle Speed: | 3000-4500 Rpm | Color: | Grey And White |
| High Light: | CNC Lathe Machinery,precision Lathe Machine |
||
Double spindle CNC lathe Machine TCK6236 - 2 Double heads threading machine
Quick Detail:
● Two spindles
● Taiwan higher linear guideways
● Higher working effiiency
● Higher rigidity cast iron
● Automatic lubrication
Description:
1.Warranty for this threading machine
1. engineers are available to do oversea machinery service. In some countries, we have oversea agent doing
after-sale service in time and professionally.
2. 24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine
for customer convenience.
5. We offer best agent price and distributer price.
2. Customer and delivery
accept ODM, OEM,
accept FOB, CFR, CIF, EXW price,
T/T 30% as deposit and the balance before machine tools leave our factory.
normal products with standard configuration manufacturing time is 7-15 working days.
Applications:
This machine is a two-spindle CNC lathe with higher speed, higher precision and higher reliability. The spindle is in
unit structure, the motion given by the frequency motor will be transferred to the spindle through synchronous belt,
thus we can get the highest speed. The spring clamps are employed for the clamping the workpiece, which makes
the clamping became more convenient, the accuracy highly improved and the operating strength saved. Spindle
bearing is contacted by 5 angular, 3 of which are placed in the front and 2 in the back. It makes the higher speed
and higher rigidity. Machine tool adopts reverse loading slide saddle, linear guide rail, has the stronger rigidity,
faster feeding speed , easier chip removing. X and Z axis screws are in the middle of the carriage, force welldistributed, smooth in movement, higher in speed. Fully shield machine house does not leak oil and water, green
and beautiful.
Specifications:
Double heads TCK6236*2 threading machine specificaton
| threading machine | unit | TCK6236-2 |
| max. swing over bed | mm | 350 |
| max. swing over cross slide | mm | 110 |
| max. turning length | mm | 250 |
| chuck | inch | 6" |
| x travel | mm | 270 |
| y travel | mm | 250 |
| guideway | Taiwan Hiwin linear guideway | |
| spindle speed | rpm | 3000-4500 |
| spindle nose | A2-5 | |
| thru-hole dia. of spindle | mm | 38 |
| fast feeding speed | m/min | x:15 z:15 |
| main motor power | kw | 5.5 |
| x/z axis motor | N.M. | 6/6 |
| tool bar section size | mm | 20*20 |
| tool type | 4 piece gang type post | |
| x/z position accuracy | mm | 0.016/0.02 |
| x/z repeatability | mm | 0.007/0.008 |
| machine dimension(L*W*H) | mm | 2000*1400*1580 |
| n.w. | kg | 2600 |
