Type: | Horizontal | Automatic Grade: | Automatic |
---|---|---|---|
Max. Swing Diameter: | 600mm | Voltage: | 380v |
Power(W): | 7.5kw | Dimension(L*W*H): | 3155*1820*1780mm |
Weight: | 3000kg | Tailstock Sleeve Taper: | MT5# |
High Light: | CNC Lathe Machinery,precision Lathe Machine |

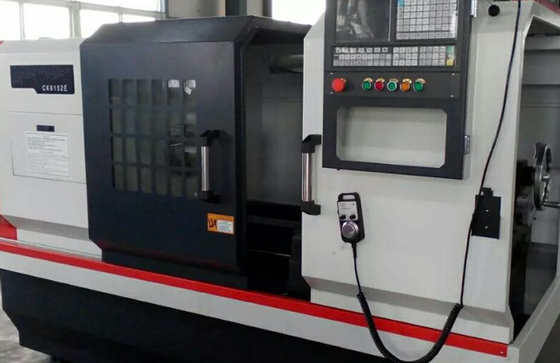

CK6150 E CNC lathe Machine with integrated automatic lubrication system
Quick Detail:

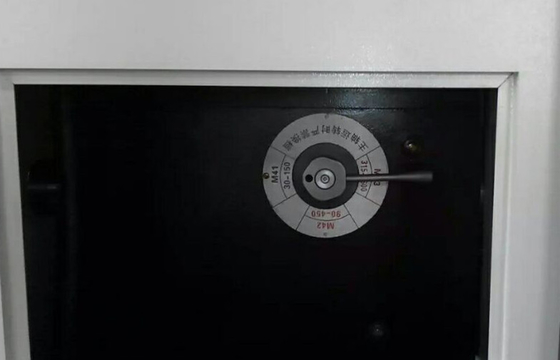

● 3-gear spindle speed, step-less in gear
● Higher rigidity pedestal
● Wider layer board
● Integrated automatic lubrication system
● Higher stability one-piece machine bed
Description:
1.The machine through the numerical control system, this machine could process different inner bore, ex-circle, circular conical surface and screw thread, especially suitable for the small and middle-sized shaft and plate work piece from rough processing to finish processing in batch .It has advantages like higher automaticity , simpler programing and higher accuracy .
2. Standard accessories for CK6150E one-piece casting CNC metal turning lathe machine
vertical electric 4 tools tool post
manual tailstock
manual three-jaw chuck 250mm ( 8")
3. Optional accessories
6 tools electric tool post
hydraulic chuck, hydraulic station, hydraulic rotary oil cylinder
hydraulic tailstock
4. Warranty
1. engineers are available to do oversea machinery service. In some countries, we have oversea agent d
oing after-sale service in time and professionally
2. 24 hours heart to heart service on-line or mobile
3. training in our factory and on-line are free of cost
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with
machine for customer convenience.
5. We offer best agent price and distributer price.
5. Customer and delivery
accept ODM, OEM,
accept FOB, CFR, CIF, EXW price
T/T 30% as deposit and the balance before machine tools leave our factory
normal products with standard configuration manufacturing time is 7-15 working days.
6. ISO, CE9001, ISO14001 certificates for all of our machine tools
1) All of our products have passed the CE ISO approval
2) Factory covers 120,000 square meters including casting,machining,assemble workshops, above 70
intermediate and senior technical personal.
3) Our casting workshop adopts lost foam to guarantee the size and precision of casting parts.
4) All the parts are performed heat treatment, natural failure, vibrating stress relief(VSR) to relieve
internal stresses.
5) All the guide surface are performed quenching.
6) we implement assembly line,and the assemble workshop includes feed box team,gear box team,
worktable team,hydraulic unit team,scrabbing team,drilling hole team,power distribution team,daubing and
painting team, test team and after-sale service team.
7) ERP information management makes our production and management more and more standardization, networked and refinement.
7. CK6150E CNC lathe machine tool usage
1.Turning work piece type: most suitable for the HIGH precision and complex work piece
2.Turing shape: inner-outer sphere, terminal,grooving,arbitary taper surface,cylinder surface, the thread of the cylinder and taper.
3.Application range: electric and instrumentation industry, automobile, motorcycle,fasteners,bearing,photographic equipment, film industry, hardware tools,watches, glasses,stationary, motors,valves, gas pipes and so on.
Applications:
This machine could process different inner bore, ex-circle, circular conical
surface and screw thread, especially suitable for the small and middle-sized shaft and plate work piece from rough processing to fiish processing in batch.
Specifications:
One piece casting and three-gear speed lathe CK6150E machines for sale specification
CK6150E three-gear speed machines for sale | ||
Capability | Max. swing dia. over bed | 500mm |
Max. swing dia. over cross slide | 280mm | |
Max. processing length | 1000/1500mm | |
Spindle | Go-ball dia. of spindle | 82mm |
Spindle taper | 90 1:20 | |
Spindle speed | 50-1400 rpm | |
Spindle nose | C8 | |
Main motor power(Variable frequency) | 7.5Kw | |
X/Z | X/Z position accuracy | 0.025/0.03 |
X/Z repeatability | 0.012/0.015 | |
X/Z rapid feeding speed | 3/6 m/min | |
Work piece | Processing accuracy | IT6-IT7 |
Rough degree of proessing surface | Ra1.6 | |
Tool holder | Type | 4-position electric type |
Tool bar size | 25*25mm | |
Tool holder travel | X320mm, Z1050/1550mm | |
Dimension | 2655/3155*1820*1780mm | |
Net weight | 2700/3000kg |
Three-gear Variable Speed CNC lathe CK6163E Chinese cnc lathe
Specification
Capability | Max. swing dia. over bed | 630mm |
Max. swing dia. over cross slide | 350mm | |
Max. processing length | 1000/1500mm | |
Spindle | Go-ball dia. of spindle | 105mm |
Spindle taper | 90 1:20 | |
Spindle speed | 25-850 rpm | |
Spindle nose | C11 | |
X/Z | X/Z position accuracy | 0.025/0.03 |
X/Z repeatability | 0.012/0.015 | |
Tool holder | Type | 4-position electric type |
Tool holder X/Z travel | 500/1200-1650mm | |
Tailstock | Tailstock sleeve dia. | 100mm |
Tailstock sleeve strock | 250mm | |
Dimension | 3200/3700*1820*1780mm | |
Net weight | 4000/4600kg |
CK6150E CNC lathe machine tool features
1. One-piece casting ensures highest rigidity and high stability
2.Three gear variable speed
3.Guide wideth is 420mm
