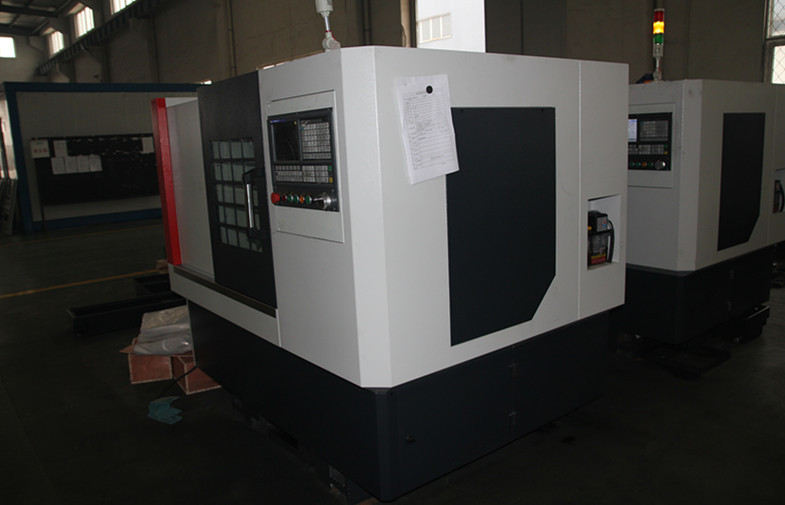

CK6180 E CNC lathe Machine 3 - gear spindle speed and hard guide way

Large Image : CK6180 E CNC lathe Machine 3 - gear spindle speed and hard guide way Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ZZGC
Certification:	CE, ISO9001, ISO14001
Model Number:	CK6180E CK61100E

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	1000 pcs
Delivery Time:	1~2weeks
Payment Terms:	T/T, L/C, PayPal, Western Union, Cash, Escrow
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Max. Swing Diameter:	1000mm	Voltage:	380v
Power(W):	11kw	Weight:	5000kg
Fast Delviery:	From Semi-finished And Bare Machine	Max. Swing Over Bed:	1000mm
Max. Swing Over Bed: 1000mm Max. Processing Length:	1000mm	Go-ball Diameter Of Spindle Drawing Pipe:	130mm
High Light:	CNC Lathe Machinery , precision Lathe Machine

CK6180 E CNC lathe Machine 3 - gear spindle speed and hard guide way

Quick Detail:

Three jaw manual chuck 800 mm (32"),
Manual tailstock,
4 tools electric tool post.

Description:

1. This lathe for metal features

1. one-piece casting machine bed--high stability,

2. three gear variable speed.

3. guide wideth 560 mm

4. main motor power 15 kw

2. Warranty for this metal lathe

1. engineers are available to do oversea machinery service. In some countries, we have oversea agent doing after-sale service in time and professionally.

2. 24 hours heart to heart service on-line or mobile.

3. training in our factory and on-line are free of cost.

4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine for customer convenience.

5. We offer best agent price and distributer price.

3. Customer and delivery

Accept ODM, OEM,
Accept FOB, CFR, CIF, EXW price,
T/T 30% as deposit and the balance before machine tools leave our factory.
Normal products with standard configuration manufacturing time is 7-15 working days.

Applications:

Suitable large size work piece in steel, cast iron, non-ferrous metal material. With the feature of big power and high rigidity, this machine is applied to heavy-cut the inner circle, excircle, end surface and thread in both metric and English system, and could drill and bore the holes.

Specifications:

CK6180E

Three-gear Variable Speed lathe		CK6180E 1000mm/1500mm
Capability	Max. swing dia. over bed	800mm
	Max. swing dia. over cross slide	480mm
	Max. processing length	1000/1500mm
Spindle	Go-ball dia. of spindle	105mm
	Spindle taper	90 1:20
	Spindle speed	25-850 rpm
	Spindle nose	C11
X/Z	X/Z position accuracy	0.025/0.03mm
X/Z	X/Z repeatability	0.01/0.015mm
Tool holder	Type	4-position electric type
Tailstock	Tailstock sleeve dia.	100mm
Tailstock	Tailstock sleeve strock	250mm
Dimension		3200/370018201780mm
Net weight		4000/4600kg

CK61100E

Three- step variable speed lathe for metal		CK61100E
Capability	Max. swing dia. over bed	1000mm
	Max. swing dia. over cross slide	660mm
	Max. processing length	1000/1500mm
Spindle	Go-ball dia. of spindle	130mm
	Spindle taper	140 1:20
	Spindle speed	18-600 rpm
	Spindle nose	C11
	Main motor power(Variable frequency)	15Kw
X/Z axis	X/Z travel	530/1200,1650,3100mm
	X/Z mini setting unite	0.001mm
	X/Z rapid feeding speed	4/5 m/min
Tailstock	Tailstock sleeve dia.	100mm
	Tailstock sleeve strock	250mm
	Tailstock taper	MT6#
Tool holder	Type	4-position electric type
Dimension		3750(4750/5500)19001800mm
Net weight		5000/6000/7000kg

Advantages

● Higher stability one-piece machine bed
● 3-gear spindle speed, step-less in gear
● Higher rigidity pedestal
● Wider layer board
● Integrated automatic lubrication system
