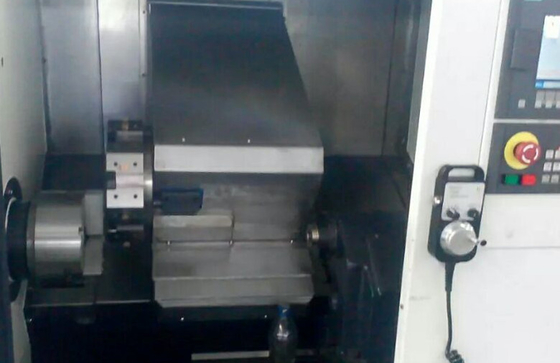

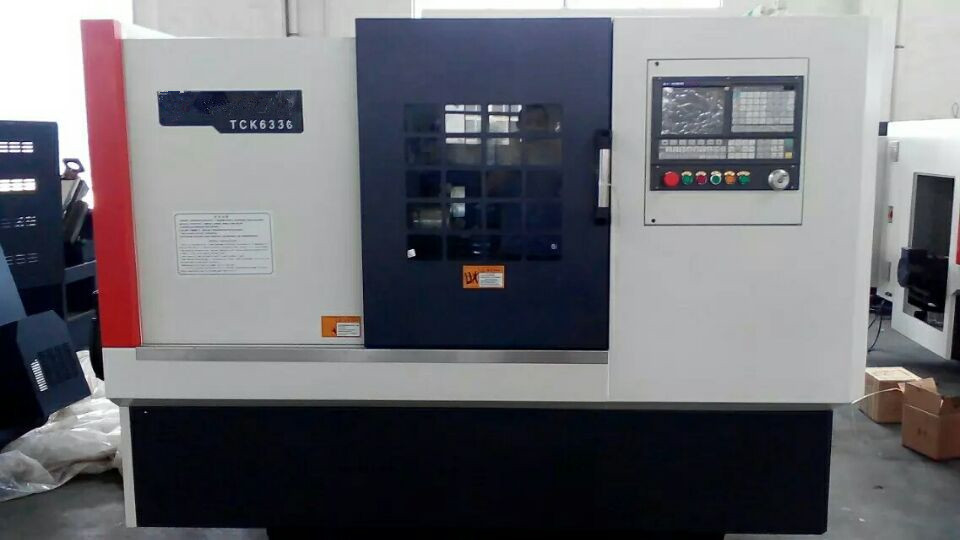

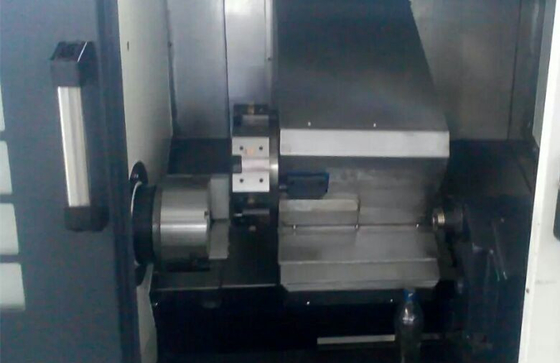

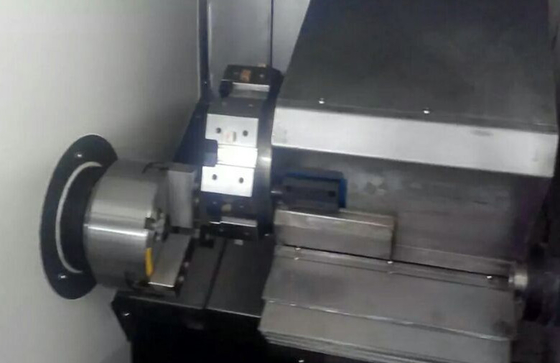

45 degrees slant bed CNC lathe machine with Taiwan linear guideways





Quick Detail:

• 4 tools gang type post
• spindle unite 4000 rpm
• Taiwan Hiwin linear guideway
• 6" hollowed oil cylinder



Description:



This machine adopts 45  highest rigid integrated bed, large torque spindle, Taiwan linear guide way, this ensures the machine higher rigidity, higher precision and higher speed Spindle center close to the operator makes loading and unloading workpieces more convenient.

 a Particularly designed heavier loading bottom base,  widened machine bed, strengthened plate ensure to meet high stength machining strict requirements.

  b. Adopt high rigid and high precision independent spindle unit, transmission is by  V belt, can start stably and smoothly.lubrication lipid, obviously reduce spindle's thermal deformation,increase thermal stability and precision.


  c. Feeding system adopt TAIWAN famous brand Hiwin linear guide way and Hiwin ball screw hardness over 58 degrees as standard configuration, ensure highest speed, highest machining precision and excellant dynamic performance.

  d. Equip Taiwan brand hollowed  chuck and hollowed oil cylinder, servo hydraulic  tool turret and hydraulic tailstock, Japan YASKAWA servo motor  as standard configuration.

  e. Taiwan LNC controller as standard configuration, GSK, KND,FANUC, MITSUBISHI,SIEMENS etc at optional.

  f. Machine bed adopts 45 degrees slant, one piece excellent resin sand cast  integral bed, torsional strength and flexural rigidity is obviously increased, meantime easy and fast for chip conveying





The first one is suitable for bearing and gear processing

The second type is suitable for the high speed and high precision processing

Customers could choose any type of them .


Specifications:



TCK6332

Specifications	Unit	TCK6332
Maximum swing over bed	mm	Φ320
Maximum swing over cross slide	mm	Φ120
Chuck	inch	collet chuck, 6
X axis travel	mm	400
Z axis travel	mm	300
Spindle speed	rpm	3,000rpm
Spindle nose		A2-5
Thru-hole diameter of spindle	mm	Φ48
Spindle bar diameter	mm	Φ38
Fast feeding speed	m/min	15
Cutting feeding speed	mm/min	1-15,000
X/Z axis motor torque	Nm	7/7
Spindle motor power	kW	5.5
Tool bar section size	mm	25x25
X/Z position accuracy	mm	0.016/0.02
X/Z repeatability	mm	0.006/0.006
Machine dimensions (L*W*H)	mm	1,600*1,600*1,630
NW	kg	1,700



TCK 6340

manufacturer machine  TCK6340	specification
Max. swing over bed	400mm
max. swing over cross slide	120mm
x axis	300mm
z axis	300mm
Guideway	Taiwan Hiwin Linear guideways
Spindle speed	1500rpm/4500rpm
Spindle nose	A2-5
Thru-hole dia of spindle	48mm
Fast moving speed	20m/min
Spindle motor	5.5kw
x/z motor torque	7/7 Nm
Tool bar section	25*25mm
Tools	4 tools gany type post
x/z position accuracy	0.016/0.02 mm
x/z repeatability	0.006/0.006mm
machine dimension	1800*1750*1700mm
N.W.	1800KG





Applications:



Applicable to automobile, motorcycle, electronics, aerospace, military industry, oil and other industries, could turn the conical surface, circular arc surface, end face of the rotary parts and could turn the various metric and inch threads and more with higher efficiency in bulk and high precision automatic processing





Competitive Advantage:



•  45° slant bed CNC lathe
•  Higher accuracy Taiwan linear guideways
•  Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
•  Spindle unit has two types, the heavy cutting type and the high speed type
•  Gang type tool post



Our serives



1. engineers are available to do oversea machinery service. In some countries, we have oversea agent

doing after-sale service in time and professionally.



2. 24 hours heart to heart service on-line or mobile.



3. training in our factory and on-line are free of cost.



4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with

 machine for customer convenience.



5. We offer best agent price and distributer price.
