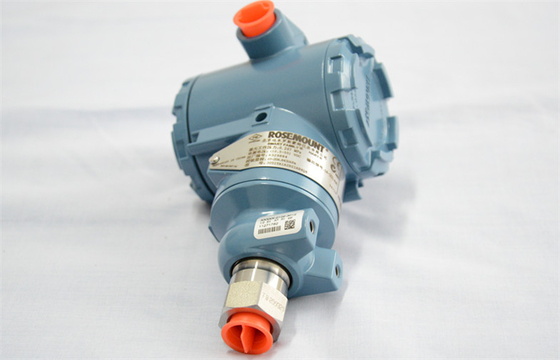

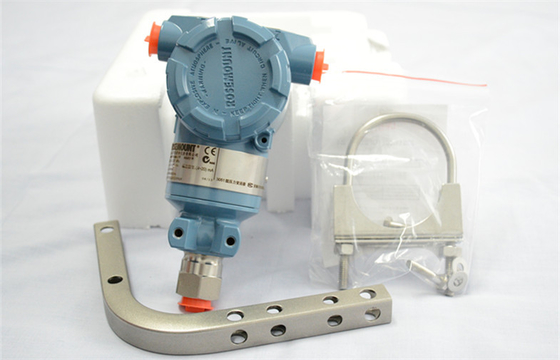

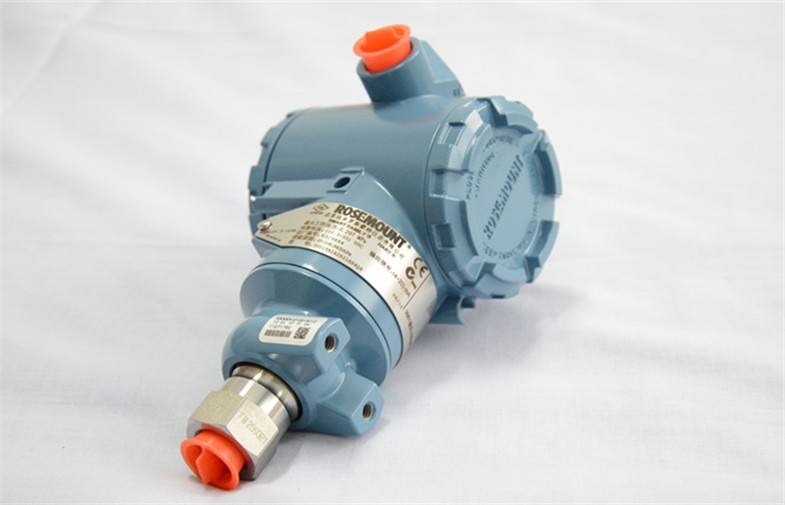

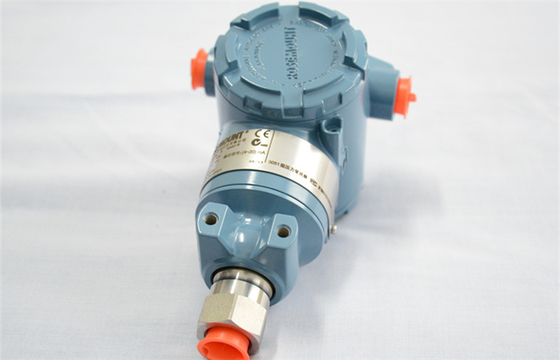

Absolute Pressure Transmitter high performance Rosemount 3051TA

Absolute Pressure Transmitter high performance Rosemount 3051TA

Quick Detail:

    · Manufactured by Rosemount

· Calibrated spans from 0.3 to 10000 psi

· Up 0.04% accuracy (optional)

· Total performance of ±0.15%

· Installed five-year stability of 0.125%

· Unmatched Dynamic Performance

· Optional PlantWeb Functionality to increase plant productivity

· Responds up to eight times faster than the typical pressure transmitter

Description:

The Rosemount 3051T pressure transmitter combines proven sensor and electronics technologies with a single isolator design for absolute and gauge pressure measurements from 0.3 to 10,000 psi. The Rosemount 3051T pressure transmitter provides a superior alternative for measuring absolute or gauge pressure with the rugged, reliable performance that is characteristic of Rosemount pressure transmitters.

The Rosemount 3051T pressure transmitter utilizes advanced sensor technology to maintain a reference accuracy of 0.065% of span (up to ±0.04% with high accuracy option) resulting in total operating performance, the true measure of "real-world" transmitter performance, of ±0.15%. Additionally, the Rosemount 3051T pressure transmitter has an installed five-year stability of ±0.125% demonstrating the ability to maintain performance over a five year period under the most demanding process conditions. The high accuracy and stability of the Rosemount 3051T pressure transmitter equates to reduced variability, lower operating and maintenance costs, and improved plant safety.

The Rosemount 3051T pressure transmitter is offered with multiple process connections and is ruggedly constructed of high quality materials. A wide range of hazardous area certifications are available. Output options available to the Rosemount 3051T pressure transmitter include 4-20mA or 1-5VDC with HART protocol, Profibus, or FOUNDATION fieldbus. The Rosemount 3051T pressure transmitter offers so many options that it can be configured for any application.

Applications:

Rosemount 3051TA absolute pressure transmitter provides a superior alternative for measuring absolute pressure with the rugged, reliable performance that is characteristic of Rosemount pressure transmitters.

Specifications:

Competitive Advantage:

Rosemount 3051T In-line Pressure transmitters provide reliable Gage and
Absolute pressure measurement in a compact in-line design. Select from the
following capabilities for seamless integration:
• Performance up to 0.04% accuracy
• Manifolds and Seal Solutions
• 4-20 mA HART, 1-5 Vdc HART low power, FOUNDATION fieldbus, and
Profibus PA protocols
• Calibrated spans/ranges from 0.3 to 10,000 psi (10,3 mbar to 689 bar)
• 316 SST and Alloy C-276 process isolators
