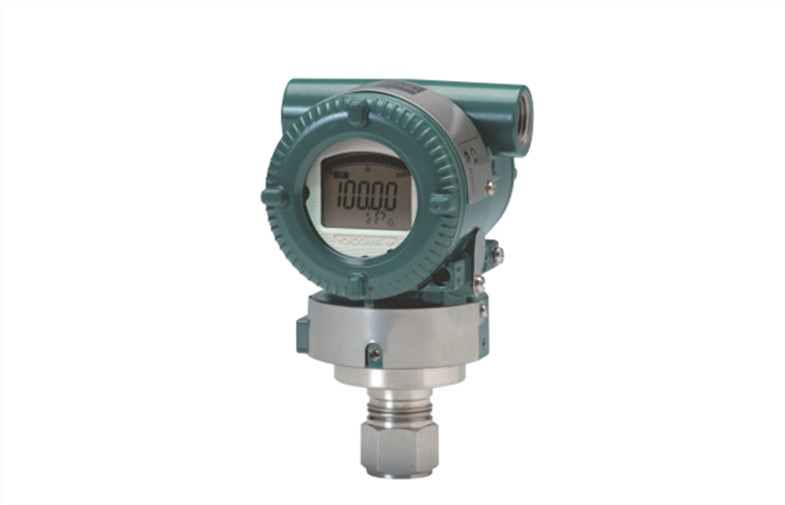

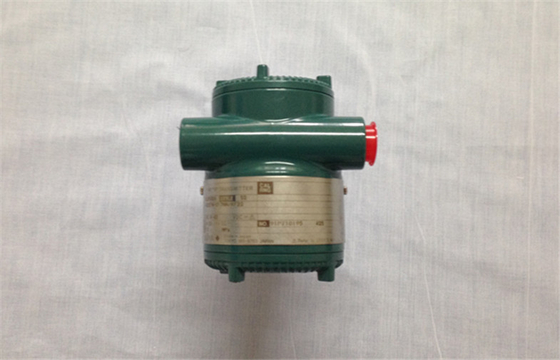

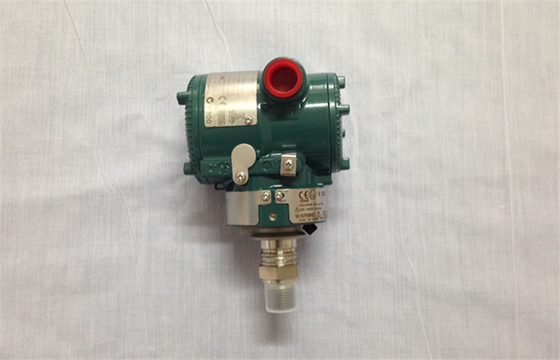

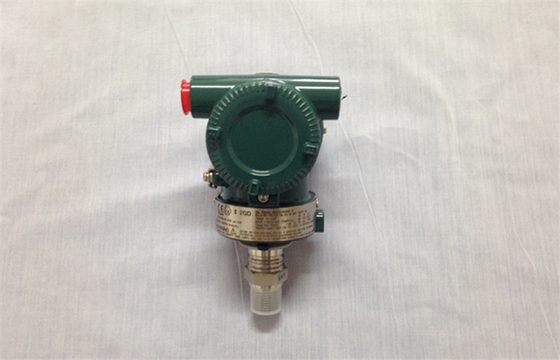

Carbon steel Absolute Pressure transducer Yokogawa EJX510A
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Output: | 4 To 20 MA DC Or FOUNDATION Fieldbus Or PROFIBUS PA | Accuracy: | ±0.15% ±0.2% |
|---|---|---|---|
| Mounting: | 2-inch Pipe Mounting | Weight: | 1.2kg Or 1.4kg |
| Bolting: | B7 Carbon Steel, 316L SST Or 660 SST | Supply Voltage: | 10.5 To 42 V DC For General Use And Flameproof Type |
| Integral Indicator: | With LCD Display | Stability: | ±0.2% Of URL Per 10 Years |
| High Light: | rosemount absolute pressure transmitter,Absolute Pressure transducer |
||
Carbon steel Absolute Pressure transducer Yokogawa EJX510A
Quick Detail:
The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it a thoroughbred of the DPharp family of pressure transmitters.
The EJX510A is the In-Line mount Absolute Pressure Transmitter in the series.
EJX510A features include:
§ 0.04% Accuracy
§ 0.2% for 10 years Stability
§ 10,800 psig Maximum Over Pressure
§ 90 ms Response Time
§ TUV SIL 2/3 (IEC61508) Certified
§ Local Parameter Setting (LPS)
Description:
Yokogawa's Differential Pressure Transmitter with DPharp digital sensor offers the performance and device intelligence needed to get greater insight into your process.
Plants run better with Yokogawa pressure transmitters.
Digital Performance
More In formation
Self-Diagnostics
Yokogawa's DPharp active sensor and rugged construction allow users to run their plants safer and with less downtime.
Yokogawa Pressure transmitter help plants run longer.
Rugged Construction
Inherently Safe Design
Accessories
In-line Valves
Applications:
Hydrogen Permeation
Hydrogen is the simplest and smallest atomic element. Water, acids, bases, and the immense family of organic compounds all contain hydrogen. Even though hydrogen is not corrosive, it can cause problems for pressure transmitters through Hydrogen Permeation.
Industry: Water& Wastewater
Impulse Line Blocking Diagnosis
Operators must receive diagnostic information before a line block leads to a malfunction. Yokogawa provides predictive diagnostics based on trend analysis of the blocking factor, which improves maintenance efficiency and reduces maintenance costs.
Industries: Onshore, Offshore, Topsides, Floating Production Storage& Offloading(FPSO), Drilling, Wellhead& Separation, Processing& Fractionation, Oil& Gas Upstream, LNG Supply Chain, Refining, Bulk& Petrochemical, Specialty Chemical
Specifications:
|
Measurement Types |
|
|
Primary Variable |
Absolute Pressure |
|
Reference Accuracy |
|
|
Primary Variable |
±0.04% of Span |
|
Stability (All Normal Operating Conditions) |
|
|
Primary Variable |
±0.2% of URL per 10 years |
|
Response Time |
|
|
Primary Variable |
90ms |
|
Rangeability |
|
|
Primary Variable |
A Capsule: 25:1 |
|
Burst Pressure (Absolute) |
|
|
A, B, or C Capsule |
4,350 psi (30 MPa) |
|
D Capsule |
19,100 psi (132 MPa) |
|
Specification Conformance |
|
|
EJX-A Series |
±3σ |
