Rosemount 8732 Integral Mount Flow Meter with Remote Mount Magnetic Flowmeter System
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Vibration Rating: | 3G Per IEC 61298 | Temperature Limits: | –58 To 165 °F (–50 To 74 °C) Without Local Operator Interface |
|---|---|---|---|
| Output Signals: | 4–20 MA | Brand: | Rosemount |
| Type: | Electromagnetic Flow Meter | Name: | Electromagnetic Flow Sensors |
| High Light: | electro magnetic flowmeter,liquid flow meter |
||

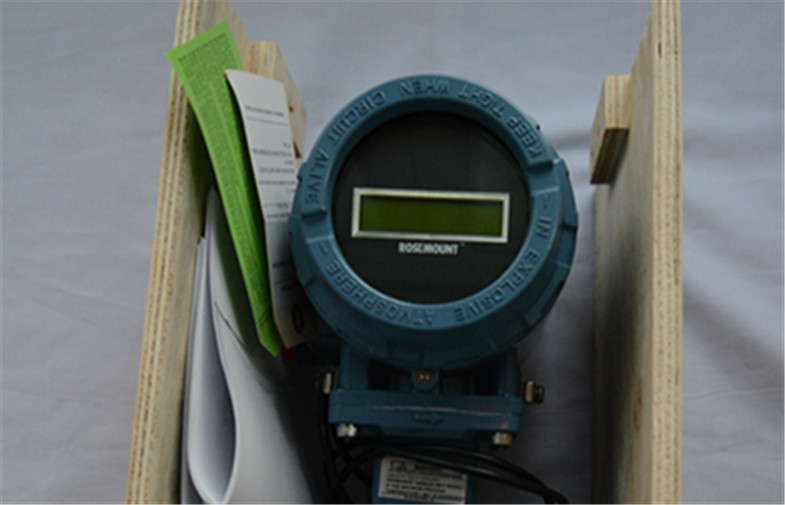

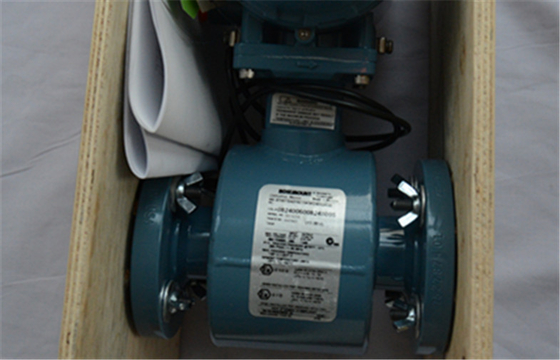

Rosemount 8732 Integral Mount Flow Meter with Remote Mount Magnetic Flowmeter System
Quick Detail:
- Manufactured by Rosemount
- HART communications
- 0.25% accuracy; 0.15% High Accuracy option
- Integral or remote mounting
- Global or AC or DC power supply
- 4 optical switch LOI user interface
- Compatible with all Rosemount (plus other manufacturers) flowtubes
Description:
The Rosemount 8732E flow transmitter offers best in class performance coupled with advanced diagnostics to provide unparalleled process management capabilities. With multiple diagnostic suites available, the Rosemount 8732E provides users the tools required for highly accurate signal processing for fluids that are traveling between 0.04 and 39 ft/s (0.01 to 12 m/s)for both forward and reverse flow in all flowtube sensor sizes.
With an optional backlit 2 line by 16 character local operator interface, the Rosemount 8732E flow transmitter can be configured by optical switches to simplify adjustments in hazardous environments without removing the cover.
The Rosemount 8732E is compatible with the Rosemount 8705, 8711, 8721 and 570TM flowtube sensors. Compatible with Rosemount 8707 flowtube sensor with D2 dual calibration option. Compatible with AC and DC powered flowtube sensors of other manufacturers.
| Rosemount 8732E Diagnostics include: | ||
|---|---|---|
|
Basic
|
DA1 Suite
|
DA2 Suite
|
Applications:
Rosemount 8732 Transmitter - Integral-mount design, backlit display, and explosion proof housing . Available with HART®, FOUNDATION™ fieldbus, or PROFIBUS PA, Device Diagnostics, and Smart™ Meter Verification to improve reliability and performance
Specifications:
|
Key Specifications |
|
|
Flowmeter Accuracy |
± 0.65 % of rate for liquids (±1.00% for line size 6-in (150 mm) and greater) ± 1% of rate for gas and steam (±1.50% for line size 6-in (150 mm) and greater) |
|
Turndown |
38:1 |
|
Output |
· ® · 4-20 mA with HART® and Scalable Pulse Output |
|
Wetted Material |
Stainless Steel - 316/316L and CF3M Nickel Alloy - C-22 and CW2M Consult factory for other wetted material options |
|
Flange Options |
ANSI Class 150 to 900 DIN PN 10 to PN 160 JIS 10K to 40K Flanges are available in a variety of facings |
|
Operating Temperatures |
–58 to 165 °F (–50 to 74 °C) without local operator interface |
|
Line Size |
Flanged - 1-in to 12-in (25 to 300 mm) |
Competitive Advantage:
- Ideal for integral mount transmitter installations
- HART / Analog, FOUNDATION fieldbus, or PROFIBUS
- PA fieldbus output available
- Advanced Diagnostics available
- Optical Switch LOI
- Optional DI/DO available (HART only)
