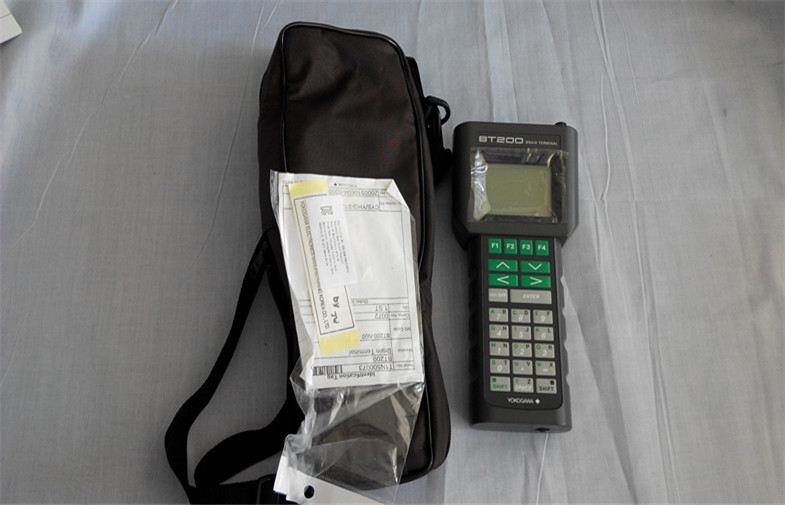

Original Yokogawa BT200 BRAIN TERMINAL with 4 to 20 mA DC signals
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Modulation: | Burst Modulation 0: 2400 Hz 1: Signal Without Carrier | Baud Rate: | 1200bps |
|---|---|---|---|
| Communication Signal: | Host To Device: +/- 0.5 V (load Resistance 250 Ω) Device To Host: +/- 2 MA | Load Resistance: | 250 To 600 Ω (including Cable Resistance) |
| Load Capacitance: | 0.22 μF Or Less | Load Inductance: | 3.3 MH Or Less |
| Power Line Spacing: | 15 Cm (6 Inch) Or More (Avoid Parallel Wiring.) | ||
| High Light: | hart 475 field communicator,475 hart communicator |
||
Original Yokogawa BT200 BRAIN TERMINAL with 4 to 20 mA DC signals
Quick Detail:
1 .Online monitoring and communication
The modulated communication signal does not interrupt the 4 to 20 mA DC signals during communication
2. Common to all Yokogawa’s equipment
The Model BT200 BRAIN TERMINAL works with all equipment that uses BRAIN communication.
3 .Easy of use
A large display (21 characters by 8 lines) eases setup and alteration procedures in English prompting interactive
sequences.
Description:
As a portable terminal, the Model BT200 BRAIN TERMINAL is used in combination with equipment
using brain communication for setting, changing, displaying and printing out parameters such as tag number,
output mode, and range, through simultaneous communication. It also monitors I/O values and self-check
results, sets constantcurrent output , and allows zero adjustments. The Model BT200 BRAIN TERMINAL
is used by connecting it between 4 to 20 mA DC signal transmission lines of the equipment or to a dedicated
connector on the ESC (Signal Conditioner Communication Card) when the system is started up or maintained.
Applications:
BT200 used in combination with equipment using brain communication for setting, changing,
displaying and printing out parameters.
Specifications:
|
Name |
BT200 BRAIN TERMINAL |
|
Feature |
1. Online monitoring and communication 2. Common to all Yokogawa’s equipment 3. Easy of Use 4. Diagnostics/security with error messages 5. Printer (BT200-P00) 6. Intrinsic safety (Only for a without printer type) |
|
EMC Conformity Standards |
EN61326-1 Class A, Table2 (For use in industrial locations), EN61326-2-3 |
|
Display: |
LCD dot matrix, 21 characters |
|
Power Supply: |
Five AA 1.5 V dry alkali batteries (LR6/AM3 (N)) For Intrinsic safety type; Five designated batteries (see OPTIONS) |
|
Dimensions: |
BT200-N00 . . . 228*110*51 mm (9.0*4.3*2.0 inch) BT200-P00 . . . 321*110*61 mm (12.6*4.3*2.4 inch) |
|
Approximate Weight: |
BT200-N00 . . . 510 g (1.12 lb) BT200-P00 . . . 700 g (1.54 lb |
