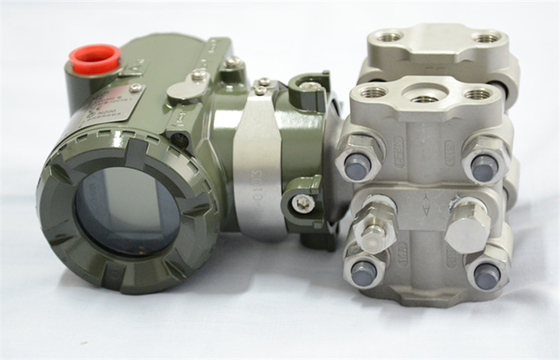

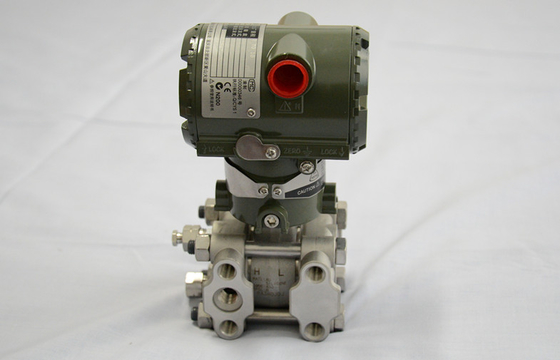

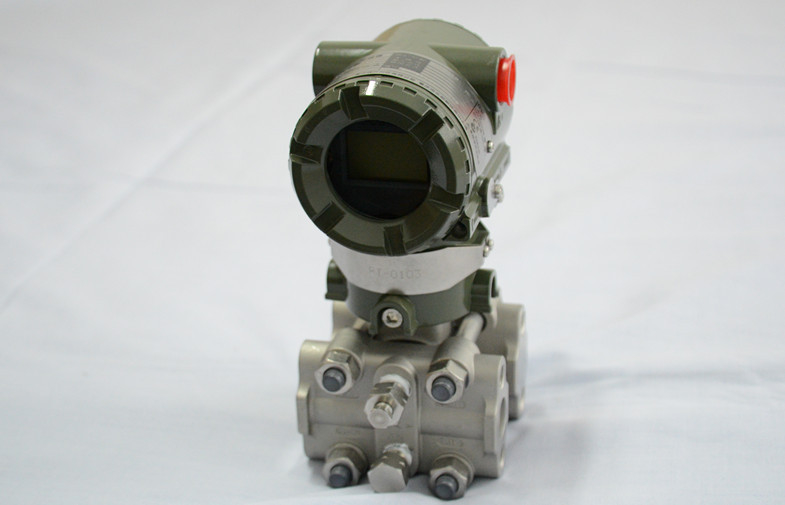

Yokogawa EJA 430A gauge pressure transmitter with 4 to 20 mA signal output

Yokogawa EJA 430A gauge pressure transmitter with 4 to 20 mA signal output

Quick Detail:

The high performance gauge pressure transmitter model EJA430A can be used to measure liquid, gas, or steam pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured gauge pressure. Model EJA430A also features remote setup and monitoring through communications with the BRAIN™ terminal and CENTUM CS™ or XL™ or HART® 275 host.

EJA430A features include:

§                                 0.065% Accuracy

§                                 0.1% Stability per 5 years

§                                 3,000 psi MWP

Description:

Yokogawa's Differential Pressure Transmitter with DPharp digital sensor offers the performance and device intelligence needed to get greater insight into your process.

Plants run better with Yokogawa pressure transmitters.

Self-Diagnostics

Yokogawa's DPharp active sensor and rugged construction allow users to run their plants safer and with less downtime.

Yokogawa Pressure transmitter help plants run longer.

Rugged Construction

Inherently Safe Design

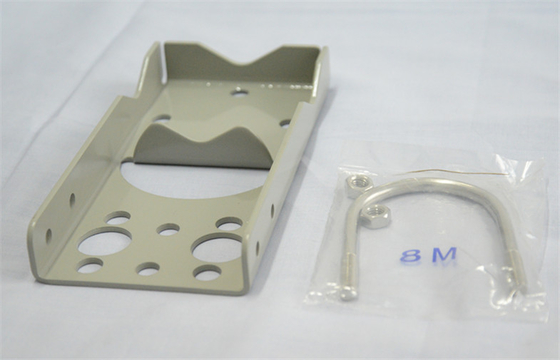

Accessories

3^rd Party Manifolds

Traditional-mount 2-Valve Manifold

Flush-Flanged Diaphragm Seal. (Other designs available)

Applications:

Hydrogen Permeation

Hydrogen is the simplest and smallest atomic element. Water, acids, bases, and the immense family of organic compounds all contain hydrogen. Even though hydrogen is not corrosive, it can cause problems for pressure transmitters through Hydrogen Permeation.

Industry: Water& Wastewater

Specifications:

Competitive Advantage:

Differential pressure transmitters, which serve as the core of field instrumentation, are widely used to measure the flow rate, pressure and density of liquids, gases and steam, as well as the level of liquid in a tank.
